ForceConstants

The ForceConstants object contains the force constants, supercell, and crystal structure information required to calculate phonon frequencies and eigenvectors at any arbitrary q via Fourier interpolation.

For faster, but less accurate linear interpolation with the Brille library, see Brille Interpolator.

Force Constants Format

Description

The ForceConstants.force_constants attribute contains the force constants matrix

\[\Phi_{\alpha {\alpha}'}^{\kappa {\kappa}'}(0,l) = \frac{\partial^{2}E}{{\partial}u_{\kappa\alpha0}{\partial}u_{{\kappa}'{\alpha}'l}}\]

This describes the change in total energy when atom \(\kappa\) in unit cell \(0`\) is displaced in direction \(\alpha\) and atom \(\kappa\prime\) in unit cell \(l\) is displaced in direction \(\alpha\prime\). In Euphonic the force constants are stored in ‘compact’ form in a matrix of \(N(3n)^2\) elements, where \(N\) is the number of cells in the supercell, and \(n\) is the number of atoms in the unit cell. This form can be expanded as needed to a ‘full’ \((3Nn)^2\)-element matrix of supercell atom pairs by mapping to an equivalent vector from unit cell 0.

Shape and Indexing

The force constants matrix has shape (N, 3*n, 3*n), where N is the number of unit cells in the supercell, and n is the number of atoms in the unit cell. The force constants index [l, a, b], where a = 3*kappa + alpha and b = 3*kappa_prime + alpha_prime, describes the change in energy when atom kappa in unit cell 0 is displaced in direction alpha and atom kappa_prime in unit cell l is displaced in direction alpha_prime. For example, ForceConstants.force_constants[5, 8, 1] is the change in energy when atom 2 in unit cell 0 is displaced in the z direction and atom 0 in unit cell 5 is displaced in the y direction.

Phase Convention

To calculate phonon frequencies and eigenvectors, the dynamical matrix at wavevector \(\mathbf{q}\) must be calculated. This is calculated by taking a Fourier transform of the force constants matrix

\[D_{\alpha {\alpha^\prime}}^{\kappa {\kappa^\prime}}(\mathbf{q}) = \frac{1}{\sqrt{M_\kappa M_{\kappa^\prime}}} \sum_{l}\Phi_{\alpha {\alpha^\prime}}^{\kappa {\kappa^\prime}}\exp\left(-i\mathbf{q}\cdot \mathbf{R}_l\right)\]

The \(\mathbf{q}\cdot \mathbf{R}_l\) component is the phase, and in Euphonic’s convention \(\mathbf{R}_l\) is defined as the vector from the origin to the origin coordinate of the \(l^\textrm{th}\) unit cell in the supercell. For this reason the cell origin coordinates are required as input to create a ForceConstants object. For force constants from programs that use the same phase convention (such as CASTEP), this information is usually provided so is straightforward.

Force constants which come from programs where the phase is defined as \(\mathbf{q}\cdot \mathbf{R}_\kappa\) using the coordinate of each atom (such as Phonopy) are likely to need to be reshaped to be compatible with Euphonic, and the cell origins are not usually provided. If the unit cell and supercell are commensurate (i.e. the supercell matrix is diagonal), calculation of the cell origins and reshaping the force constants matrix should be trivial. However, if the unit and supercell are incommensurate there may be some reindexing required to get the force constants in the correct format. See the example below, which shows a 2D system with the following properties:

• Cartesian unit cell vectors: [1, 1], [1, -1]

• Fractional atom coordinates: [0.8, 0.4], [0.2, 0.5]

• Supercell matrix: [[1, -1], [1, 1]]

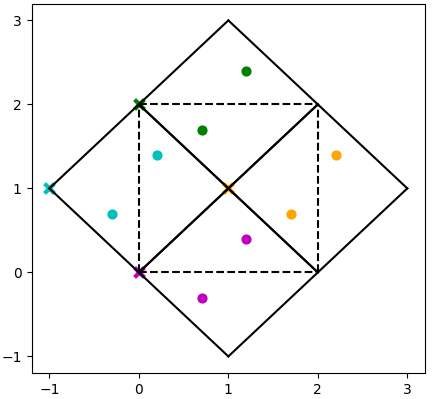

The solid line shows the unit cells, and the dashed line shows the supercell. The atoms are coloured depending on the unit cell they belong to. It can be seen that the supercell contains atoms from 4 different unit cells. There would therefore be 4 different cell origins, shown by the corresponding coloured crosses. However, there are actually only 2 unit cells in the supercell, and Euphonic requires that the number of cell origins is the same as the number of unit cells. Using equivalent vectors in adjacent supercells, the 4 atoms in the supercell can be assigned to just 2 cell origins. For example, if we decided to use the origins of the magenta cell ([0, 0]) and orange cell ([1, 1]), the blue and green atoms would have to be indexed into these 2 cell origins. The way to do this can be seen in the example below:

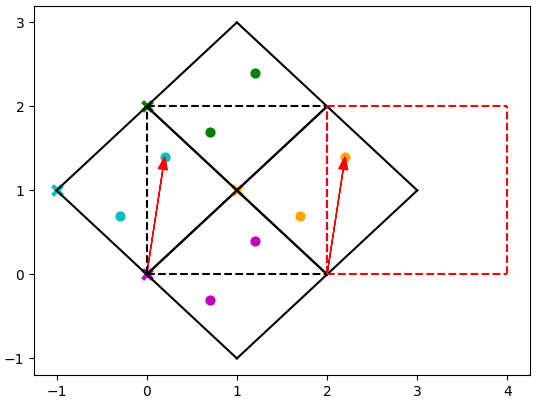

The vector from [0, 0] to the blue atom is the same as the vector from [2, 0] to an atom in the orange cell in the adjacent supercell (shown by the red dashed line). The blue atom can therefore be indexed into the orange cell. Similarly the green atom can be indexed into the magenta cell, so only 2 cell origins are required. This is a simple example, but the same applies to more realistic 3D structures.

This transformation is done automatically when reading from Phonopy. If reading force constants from another program, there is a function to help with this transformation, see Reading From Other Programs.

Dipole-dipole Force Constants

For materials without dipole-dipole interactions (non-zero Born effective charges) force constants typically decay as \(1/r^{5-7}\), but if dipole-dipole interactions are present, they only decay at \(1/r^3\). It is often not computationally practical to compute the force constants at such a distance. Fortunately there is an analytical expression for these dipole interactions, which can be applied to the dynamical matrix to produce the correct phonon frequencies and displacements. However, to avoid double counting some of the dipole-dipole interactions, the force constants matrix from which the dynamical matrix is calculated must not already include the short-ranged part of the dipole interactions. This is represented in equation 78 in Gonze & Lee, 1997:

\[C = C^{SR} + C^{DD}\]

Where \(C\) is the ‘total’ force constants matrix containing both short-ranged interactions and long-ranged dipole interactions, \(C^{SR}\) is the force constants matrix containing only the short-ranged interactions (i.e. no dipole interactions), and \(C^{DD}\) is the force constants matrix containing only the long-ranged dipole interactions, and all matrices have the same shape and indexing and contain interactions to the same cut-off distance. To correctly apply the correction to the resulting dynamical matrix, \(C^{SR}\) must be used, which is what Euphonic requires. Some codes (e.g. Phonopy) output \(C\) so must be converted. This conversion is done automatically when reading from Phonopy, but if reading force constants from another program, there is a class method ForceConstants.from_total_fc_with_dipole which can do this transformation. An example of this is shown in Reading From Other Programs

Reading From CASTEP

The force constants matrix and other required information can be read from a .castep_bin or .check file with ForceConstants.from_castep:

from euphonic import ForceConstants

filename = 'quartz/quartz.castep_bin'
fc = ForceConstants.from_castep(filename)

By default CASTEP may not write the force constants, if you receive an error saying the force constants could not be read, in the .param file ensure a PHONON_FINE_METHOD has been chosen e.g. PHONON_FINE_METHOD: interpolate, and set PHONON_WRITE_FORCE_CONSTANTS: true, then rerun CASTEP to trigger the force constants to be written.

Reading From Phonopy

When using Phonopy with Euphonic, it is recommended that all the required data (force constants, crystal structure, born charges if applicable) be collected in a single phonopy.yaml file. This can be done by running Phonopy with the --include-all flag or with INCLUDE_ALL = .TRUE. (phonopy >= 2.5.0 only).

Required information is read from Phonopy output files using ForceConstants.from_phonopy. A path keyword argument can be supplied (if the files are in another directory), and by default phonopy.yaml is read, but the filename can be changed with the summary_name keyword argument:

from euphonic import ForceConstants

fc = ForceConstants.from_phonopy(path='NaCl',
                                 summary_name='phonopy_nacl.yaml')

If you are using an older version of Phonopy, the force constants and born charges can also be read from Phonopy plaintext or hdf5 files by specifying the fc_name and born_name keyword arguments:

from euphonic import ForceConstants

fc = ForceConstants.from_phonopy(path='NaCl',
                                 summary_name='phonopy_nacl.yaml',
                                 fc_name='force_constants.hdf5',
                                 born_name='BORN_nacl')

Reading From Other Programs

A Euphonic ForceConstants object can be created from arbitrary force constants and crystal information if they can be provided as Numpy arrays. If the force constants are in the same form and shape as descibed in the Force Constants Format section, they can simply be used in the ForceConstants object constructor. The crystal information must be provided as a Crystal object, which can similarly be created using the class constructor. Some information must be provided as a pint Quantity with both a magnitude and a unit (see Units). For more details on the shape of each array, see the docstrings for each object. An example is shown below, assuming that the inputs are being loaded from existing .npy files:

import numpy as np
from euphonic import ureg, Crystal, ForceConstants

# Load arrays from files and apply any required units
cell_vectors = np.load('cell_vectors.npy')*ureg('angstrom')
atom_r = np.load('atom_r.npy')
atom_type = np.load('atom_type.npy')
atom_mass = np.load('atom_mass.npy')*ureg('amu')
force_constants = np.load('force_constants.npy')*ureg('meV/(angstrom**2)')
sc_matrix = np.load('sc_matrix.npy')
cell_origins = np.load('cell_origins.npy')

# Create a Crystal object
crystal = Crystal(cell_vectors, atom_r, atom_type, atom_mass)
# Create a ForceConstants object, using the Crystal object
fc = ForceConstants(crystal, force_constants, sc_matrix, cell_origins)

Changing Phase Convention

If, as described in the Force Constants Format section, the source program uses the atomic coordinate phase convention, there may be some re-indexing required to get the force constants in the correct shape and form. There is a helper function euphonic.util.convert_fc_phases which will convert a force constants of shape (n, N*n, 3, 3), to the shape required by Euphonic (N, 3*n, 3*n), will do any re-indexing required, and will return the appropriate cell origins, even if the supercell matrix is non-diagonal. All that is required are the coordinates of the atoms in the unit cell and supercell respectively, the supercell matrix, and information on how atoms in the unit cell index into the supercell and vice versa. For more details see the function docstring. An example is below:

import numpy as np
from euphonic import ureg, Crystal, ForceConstants
from euphonic.util import convert_fc_phases

# Load arrays from files and apply any required units
cell_vectors = np.load('cell_vectors.npy')*ureg('angstrom')
atom_r = np.load('atom_r.npy')
atom_type = np.load('atom_type.npy')
atom_mass = np.load('atom_mass.npy')*ureg('amu')
sc_matrix = np.load('sc_matrix.npy')

# Load arrays from files required for convert_fc_phases
force_constants_atomic_phase = np.load('force_constants_atomic_phase.npy')
supercell_atom_r = np.load('supercell_atom_r.npy')
unit_to_supercell_atom_idx = np.load('unit_to_supercell_atom_idx.npy')
super_to_unit_cell_atom_idx = np.load('super_to_unit_cell_atom_idx.npy')
# Convert force constants to Euphonic shape and convention
force_constants, cell_origins = convert_fc_phases(
    force_constants_atomic_phase,
    atom_r,
    supercell_atom_r,
    unit_to_supercell_atom_idx,
    super_to_unit_cell_atom_idx,
    sc_matrix)
# Apply units to force constants
force_constants = force_constants*ureg('meV/(angstrom**2)')

# Create a Crystal object
crystal = Crystal(cell_vectors, atom_r, atom_type, atom_mass)
# Create a ForceConstants object, using the Crystal object
fc = ForceConstants(crystal, force_constants, sc_matrix, cell_origins)

Dipole-dipole Force Constants - Converting from Total to Short-ranged

If, as described in the Force Constants Format section, the force constants matrix contains the dipole interactions, these must be subtracted to produce the short-ranged force constants matrix before being used in Euphonic. This can be done using the class method ForceConstants.from_total_fc_with_dipole. Note that the force constants must have a Euphonic-like shape before using this method. An example is below:

import numpy as np
from euphonic import ureg, Crystal, ForceConstants

# Load arrays from files and apply any required units
cell_vectors = np.load('cell_vectors.npy')*ureg('angstrom')
atom_r = np.load('atom_r.npy')
atom_type = np.load('atom_type.npy')
atom_mass = np.load('atom_mass.npy')*ureg('amu')
force_constants = np.load('force_constants.npy')*ureg('meV/(angstrom**2)')
sc_matrix = np.load('sc_matrix.npy')
cell_origins = np.load('cell_origins.npy')
born = np.load('born.npy')*ureg('e')
dielectric = np.load('dielectric.npy')*ureg('e**2/(bohr*hartree)')

# Create a Crystal object
crystal = Crystal(cell_vectors, atom_r, atom_type, atom_mass)
# Create a ForceConstants object from the total force constants
fc = ForceConstants.from_total_fc_with_dipole(
  crystal, force_constants, sc_matrix, cell_origins, born, dielectric)

Calculating Phonon Frequencies and Eigenvectors

Phonon frequencies and eigenvectors are calculated using ForceConstants.calculate_qpoint_phonon_modes (see the docstring for algorithm details). A Numpy array of q-points of shape (n_qpts, 3) must be provided, and a QpointPhononModes object is returned. A recommended q-point path for plotting bandstructures can be generated using seekpath:

import seekpath
import numpy as np
from euphonic import ForceConstants

# Read quartz data from quartz.castep_bin
filename = 'quartz/quartz.castep_bin'
fc = ForceConstants.from_castep(filename)

# Generate a recommended q-point path using seekpath
cell = fc.crystal.to_spglib_cell()
qpts = seekpath.get_explicit_k_path(cell)["explicit_kpoints_rel"]

# Calculate frequencies/eigenvectors
phonons = fc.calculate_qpoint_phonon_modes(qpts, asr='reciprocal')

Calculating Phonon Frequencies Only

This uses the same algorithm as for calculating both the frequencies and eigenvectors, only with lower memory requirements as the eigenvectors are not stored. This is done using ForceConstants.calculate_qpoint_frequencies which returns a QpointFrequencies object.

Docstring

class ForceConstants(crystal, force_constants, sc_matrix, cell_origins, born=None, dielectric=None)

A class to read and store the data required for a phonon interpolation calculation from model (e.g. CASTEP) output, and calculate phonon frequencies/eigenvectors at arbitrary q-points via Fourier interpolation

Variables:

• crystal – Lattice and atom information

• force_constants – Shape (n_cells_in_sc, 3*n_atoms, 3*n_atoms) float Quantity in energy/length**2 units. The force constants matrix

• sc_matrix – Shape (3, 3) int ndarray. The transformation matrix to convert from the unit cell vectors to the supercell vectors

• n_cells_in_sc – Number of cells in the supercell

• cell_origins – Shape (n_cells_in_sc, 3) int ndarray. The origin coordinates of each unit cell within the supercell, in units of the unit cell vectors

• born – Shape (n_atoms, 3, 3) float Quantity in charge units or None. The Born charges for each atom

• dielectric – Shape (3, 3) float Quantity in charge**2/(length*energy) units or None. The dielectric permittivity tensor

Parameters:

• crystal (Crystal)

• force_constants (Quantity)

• sc_matrix (ndarray)

• cell_origins (ndarray)

• born (Quantity | None)

• dielectric (Quantity | None)

__init__(crystal, force_constants, sc_matrix, cell_origins, born=None, dielectric=None)

Parameters:

• crystal (Crystal) – Lattice and atom information

• force_constants (Quantity) – Shape (n_cells_in_sc, 3*n_atoms, 3*n_atoms) float Quantity in energy/length**2 units. The force constants matrix

• sc_matrix (ndarray) – Shape (3, 3) int ndarray. The transformation matrix to convert from the unit cell vectors to the supercell vectors

• cell_origins (ndarray) – Shape (n_cells_in_sc, 3) int ndarray. The origin coordinates of each unit cell within the supercell, in units of the unit cell vectors

• born (Quantity | None) – Shape (n_atoms, 3, 3) float Quantity in charge units. The Born charges for each atom

• dielectric (Quantity | None) – Shape (3, 3) float Quantity in charge**2/(length*energy) units. The dielectric permittivity tensor

Return type:

None

calculate_qpoint_phonon_modes(qpts, *, weights=None, asr=None, dipole=True, dipole_parameter=1.0, splitting=True, insert_gamma=False, reduce_qpts=True, use_c=None, n_threads=None, return_mode_gradients=False)

Calculate phonon frequencies and eigenvectors at specified q-points from a force constants matrix via Fourier interpolation

Parameters:

• qpts (ndarray) – Shape (n_qpts, 3) float ndarray. The q-points to interpolate onto in reciprocal cell vector units

• weights (ndarray | None) – Shape (n_qpts,) float ndarray. The weight for each q-point. If not given, equal weights are applied

• asr (Literal['realspace', 'reciprocal'] | None) – Which acoustic sum rule correction to apply. ‘realspace’ applies the correction to the force constant matrix in real space. ‘reciprocal’ applies the correction to the dynamical matrix at every q-point

• dipole (bool) – Whether to calculate the dipole tail correction to the dynamical matrix at each q-point using the Ewald sum, if the Born charges and dielectric permitivitty tensor are present.

• dipole_parameter (float) – Changes the cutoff in real/reciprocal space for the dipole Ewald sum. A higher value uses more reciprocal terms. If tuned correctly this can result in performance improvements. See euphonic-optimise-dipole-parameter program for help on choosing a good dipole_parameter.

• splitting (bool) – Whether to calculate the LO-TO splitting at the gamma points. Only applied if dipole is True and the Born charges and dielectric permitivitty tensor are present.

• insert_gamma (bool) – If splitting is True, this will insert gamma points into qpts to store the extra split frequencies. Note this means that the length of qpts in the output QpointPhononModes object will not necessarily be the same as the input qpts. If qpts already contains double gamma points where you want split frequencies, leave this as False.

• reduce_qpts (bool) – Whether to use periodicity to reduce all q-points and only calculate for unique q-points within the 1st BZ. This won’t change the output but could increase performance.

• use_c (bool | None) – Whether to use C instead of Python to calculate and diagonalise the dynamical matrix. By default this is None and will use the C extension if it is installed, and fall back to Python if not. If use_c=True, this will force use of the C extension and an error will be raised if it is not installed. If use_c=False, this will force use of Python, even if the C extension is installed

• n_threads (int | None) – The number of OpenMP threads to use when looping over q-points in C. By default this is None, in which case the environment variable EUPHONIC_NUM_THREADS will be used to determine number of threads, if this is not set then the value returned from multiprocessing.cpu_count() will be used

• return_mode_gradients (bool) – Whether to also return the vector mode gradients (in Cartesian coordinates). These can be converted to mode widths and used in adaptive broadening for DOS. For details on how these are calculated see the Notes section

Returns:

• qpoint_phonon_modes – A QpointPhononModes object containing the interpolated frequencies and eigenvectors at each q-point. Note that if there is LO-TO splitting, and insert_gamma=True, the number of input q-points may not be the same as in the output object

• mode_gradients – Optional shape (n_qpts, n_branches, 3) float Quantity, the vector mode gradients dw/dq in Cartesian coordinates. Is only returned if return_mode_gradients is true

Raises:

ImportCError – If use_c=True but the C extension cannot be imported

Return type:

QpointPhononModes | tuple[QpointPhononModes, Quantity]

Notes

Phonon Frequencies/Eigenvectors Calculation

Phonon frequencies/eigenvectors are calculated at any q-point by Fourier interpolation of a force constants matrix. The force constants matrix is defined as [1]:

\[\Phi_{\alpha {\alpha}^\prime}^{\kappa {\kappa}^\prime}(0,l) = \frac{\partial^{2}E}{{\partial}u_{\kappa\alpha0}{\partial}u_{{{\kappa}^\prime}{{\alpha}^\prime}l}}\]

where the unit cell containing the displaced atom is labelled \(0\) and \(l\) runs over unit cells in the crystal, \(\kappa\) runs over atoms in the unit cell, \(\alpha\) runs over the Cartesian directions, and \(u_{\kappa{\alpha}l}\) is the displacement of atom \(\kappa\) in cell \(l\) in direction \(\alpha\) from its equilibrium position. This can be used to calculate the dynamical matrix \(D_{\alpha {\alpha}^\prime}^{\kappa {\kappa}^\prime}\) at \(\mathbf{q}\):

\[D_{\alpha {\alpha^\prime}}^{\kappa {\kappa^\prime}}(\mathbf{q}) = \frac{1}{\sqrt{M_\kappa M_{\kappa^\prime}}} \sum_{l}\Phi_{\alpha {\alpha^\prime}}^{\kappa {\kappa^\prime}}\exp\left(-i\mathbf{q}\cdot \mathbf{R}_l\right)\]

where \(M_\kappa\) is the mass of atom \(\kappa\), \(\mathbf{R}_l\) is the vector from the origin to the \(l^\textrm{th}\) unit cell. The eigenvalue equation for the dynamical matrix is then:

\[\sum_{\kappa^\prime \alpha^\prime}D_{\alpha {\alpha}^\prime}^{\kappa {\kappa}^\prime}(\mathbf{q}) {e}_{\mathbf{q}\nu{\kappa^\prime}{\alpha^\prime}} = {\omega}_{\mathbf{q}\nu}^2 {e}_{\mathbf{q}\nu\kappa\alpha}\]

where the eigenvalues \({\omega}_{\mathbf{q}\nu}^2\) are the square of the phonon frequencies of mode \(\nu\) at \(\mathbf{q}\), and the eigenvectors \(\mathbf{e}_{\mathbf{q}\nu\kappa}\) are the phonon polarisation vectors at \(\mathbf{q}\) of mode \(\nu\) for atom \(\kappa\). The produced eigenvectors are normalised such that:

\[\sum_{\kappa}{|\mathbf{e}_{\mathbf{q}\nu\kappa}|^2} = 1\]

In polar materials, there is an additional long-ranged correction to the force constants matrix (applied if dipole=True) and a non-analytical correction at the gamma point [2] (applied if splitting=True).

[1]

13. 20. Dove, Introduction to Lattice Dynamics, Cambridge University Press, Cambridge, 1993, 83-87

[2]

24. Gonze, J. C. Charlier, D. C. Allan, M. P. Teter, Phys. Rev. B, 1994, 50, 13035-13038

Mode Gradients Calculation

The mode gradients can be used to calculate mode widths to be used in the adaptive broadening scheme [3] when computing a DOS - this broadens each mode contribution individually according to its mode width. The mode widths are proportional to the mode gradients and can be estimated using euphonic.util.mode_gradients_to_widths

The mode gradients \(\frac{d\omega_{\mathbf{q}\nu}}{d\mathbf{q}}\) at each \(\mathbf{q}\) are calculated at the same time as the phonon frequencies and eigenvectors as follows.

Firstly, the eigenvalue equation above can be written in matrix form as:

\[E(\mathbf{q})\Omega(\mathbf{q}) = D(\mathbf{q})E(\mathbf{q})\]

\[\Omega(\mathbf{q}) = E^{-1}(\mathbf{q})D(\mathbf{q})E(\mathbf{q})\]

Where \(\Omega(\mathbf{q})\) is the diagonal matrix of phonon frequencies squared \(\omega_{\mathbf{q}\nu}^{2}\) and \(E(\mathbf{q})\) is the matrix containing eigenvectors for all modes. \(\frac{d\omega_{\mathbf{q}\nu}}{d\mathbf{q}}\), can then be obtained by differentiating the above equation with respect to \(\mathbf{q}\) using the product rule:

\[\frac{d\Omega}{d\mathbf{q}} = 2\omega_{\mathbf{q}\nu}\frac{d\omega_{\mathbf{q}\nu}}{d\mathbf{q}}\delta_{\nu \nu^{\prime}}\]

\[\frac{d\omega_{\mathbf{q}\nu}}{d\mathbf{q}} = \frac{1}{2\omega_{\mathbf{q}\nu}}{( \frac{d{E^{-1}}}{d\mathbf{q}}DE + E^{-1}\frac{dD}{d\mathbf{q}}E + E^{-1}D\frac{dE}{d\mathbf{q}})}\]

Given that eigenvectors are normalised and orthogonal, an identity can be employed:

\[\frac{d}{d\lambda}E^{\prime}E = 0\]

So terms involving the first derivative of the eigenvector matrix can be set to zero, resulting in:

\[\frac{d\omega_{\mathbf{q}\nu}}{d\mathbf{q}} = \frac{1}{2\omega_{\mathbf{q}\nu}}{(E^{-1}\frac{dD}{d\mathbf{q}}E)}\]

\(\frac{dD}{d\mathbf{q}}\) can be obtained by differentiating the Fourier equation above:

\[\frac{dD_{\alpha {\alpha}^\prime}^{\kappa {\kappa}^\prime}}{d\mathbf{q}} = \frac{-i \mathbf{R}_l}{\sqrt{M_\kappa M_{\kappa ^\prime}}} \sum_{l}\Phi_{\alpha\alpha^\prime}^{\kappa\kappa^\prime}\exp\left(-i\mathbf{q}\cdot \mathbf{R}_l\right)\]

[3]

10. 18. Yates, X. Wang, D. Vanderbilt and I. Souza, Phys. Rev. B, 2007, 75, 195121

calculate_qpoint_frequencies(qpts, *, weights=None, asr=None, dipole=True, dipole_parameter=1.0, splitting=True, insert_gamma=False, reduce_qpts=True, use_c=None, n_threads=None, return_mode_gradients=False)

Calculate phonon frequencies (without eigenvectors) at specified q-points. See ForceConstants.calculate_qpoint_phonon_modes for argument and algorithm details

Parameters:

• qpts (ndarray)

• weights (ndarray | None)

• asr (Literal['realspace', 'reciprocal'] | None)

• dipole (bool)

• dipole_parameter (float)

• splitting (bool)

• insert_gamma (bool)

• reduce_qpts (bool)

• use_c (bool | None)

• n_threads (int | None)

• return_mode_gradients (bool)

Return type:

QpointFrequencies | tuple[QpointFrequencies, Quantity]

to_dict()

Convert to a dictionary. See ForceConstants.from_dict for details on keys/values

Returns:

dict

Return type:

dict[str, Any]

to_json_file(filename)

Write to a JSON file. JSON fields are equivalent to ForceConstants.from_dict keys

Parameters:

filename (Path | str) – Name of the JSON file to write to

Return type:

None

classmethod from_dict(d)

Convert a dictionary to a ForceConstants object

Parameters:

d (dict[str, Any]) –

A dictionary with the following keys/values:

• ’crystal’: dict, see Crystal.from_dict

• ’force_constants’: (n_cells_in_sc, 3*crystal.n_atoms, 3*crystal.n_atoms) float ndarray

• ’force_constants_unit’: str

• ’sc_matrix’: (3,3) int ndarray

• ’cell_origins’: (n_cells_in_sc, 3) int ndarray

There are also the following optional keys:

• ’born’: (3*crystal.n_atoms, 3, 3) float ndarray

• ’born_unit’: str

• ’dielectric’: (3, 3) float ndarray

• ’dielectric_unit’: str

Returns:

forceconstants

Return type:

Self

classmethod from_total_fc_with_dipole(crystal, force_constants, sc_matrix, cell_origins, born, dielectric)

Subtracts a dipole term from the input force constants matrix to convert the ‘total’ force constants matrix containing both dipole-dipole interactions and short-ranged interactions to one containing only short-ranged interactions, as defined in eq. 78 from [4] . This correction may need to be applied as Euphonic requires the short-ranged matrix, whereas some codes output the total matrix (e.g Phonopy, but note that the from_phonopy method will apply this correction automatically). If the force constants matrix is already short ranged or the material has zero Born effective charges or dielectric permittivity tensor this correction should not be applied.

[4]

24. Gonze and C. Lee., Phys. Rev. B, 1997, 55, 10355-10368

Parameters:

• force_constants (Quantity) – Shape (n_cells_in_sc, 3*n_atoms, 3*n_atoms) float Quantity in energy/length**2 units. The ‘total’ force constants matrix containing both dipole-dipole interactions and short-ranged interactions.

• crystal (Crystal) – Lattice and atom information

• sc_matrix (ndarray) – Shape (3, 3) int ndarray. The transformation matrix to convert from the unit cell vectors to the supercell vectors

• cell_origins (ndarray) – Shape (n_cells_in_sc, 3) int ndarray. The origin coordinates of each unit cell within the supercell, in units of the unit cell vectors

• born (Quantity) – Shape (n_atoms, 3, 3) float Quantity in charge units. The Born charges for each atom

• dielectric (Quantity) – Shape (3, 3) float Quantity in charge**2/(length*energy) units. The dielectric permittivity tensor

Returns:

forceconstants

Return type:

Self

classmethod from_json_file(filename)

Read from a JSON file. See ForceConstants.from_dict for required fields

Parameters:

filename (Path | str) – The file to read from

Returns:

forceconstants

Return type:

Self

classmethod from_castep(filename)

Reads from a .castep_bin or .check file

Parameters:

filename (Path | str) – The path and name of the file to read

Returns:

forceconstants

Return type:

Self

classmethod from_phonopy(*, path='.', summary_name='phonopy.yaml', born_name=None, fc_name='FORCE_CONSTANTS', fc_format=None)

Reads data from the phonopy summary file (default phonopy.yaml) and optionally born and force constants files. Only attempts to read from born or force constants files if these can’t be found in the summary file.

Parameters:

• path (Path | str) – Path to directory containing the file(s)

• summary_name (Path | str) – Filename of phonopy summary file, default phonopy.yaml. By default any information (e.g. force constants) read from this file takes priority

• born_name (str | None) – Name of the Phonopy file containing born charges and dielectric tensor (by convention in Phonopy this would be called BORN). Is only read if Born charges can’t be found in the summary_name file

• fc_name (Path | str) – Name of file containing force constants. Is only read if force constants can’t be found in summary_name

• fc_format (str | None) – One of {‘phonopy’, ‘hdf5’}. Format of file containing force constants data, if it can’t be determined from the extension. FORCE_CONSTANTS is type ‘phonopy’

Returns:

forceconstants

Return type:

Self
